Brand Name : OiD
Model Number : INR18650N22A20
Certification : BIS, KC, BSMI, CB, UL, CCC
Place of Origin : China
MOQ : 100pcs
Price : $0.5 ~ $100.0 / pcs
Delivery Time : 3 ~ 7 days for storage
Payment Terms : TT,L/C,Western Union
Name : 18650 2200mAh Battery
Battery Type : 2200mAh Rechargeable
ODM : Free custom design for packs
Cathode : NMC/NCA
Industry-Leading Energy Density : 250-300Wh/kg
High Discharge Rate : 20A Continuous current
Cost-Effective & Mass-Produced : Most widely produced lithium-ion cell
Standard Design : Lightweight & Space-Efficient Design

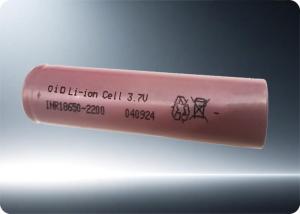

INR18650N22A20 3.7V 2200mAh 20A 300 Cycles 18650 Battery
Product Name
INR18650N22A20 18650 Battery
Advantages
Specifications
Parameter | Value |
Model | INR18650N22A20 |
Nominal Voltage | 3.7V |
Nominal Capacity | 2200mAh |
Charging Voltage | 4.20V ± 0.05V |
Discharge Cut-off Voltage | 2.75V |
Max Charging Current | 2.2A |
Max Continuous Discharge Current | 20A |
Weight | ≤45.5g |
Dimensions | Diameter: ≤18.50mm, Height: ≤65.30mm |
Internal Resistance | ≤18mΩ |
Energy Density | Volume: 464Wh/L, Weight: 179Wh/kg |
Terminal Type | Standard 18650 flat top or button top (customizable) |
Cycle Life
Condition | Cycles | Capacity Retention |
2.2A Charge / 11A Discharge | 300 | ≥80% |
2.2A Charge / 20A Discharge | 250 | ≥70% |
Discharge Curve
Operating Temperature Range
Condition | Temperature Range |
Charging | 0°C to 50°C |
Discharging | -20°C to 75°C |
Storage | -20°C to 45°C (recommended for long-term storage) |
Certifications
Key Features
Applications
Usage Warnings & Precautions
Storage Guidelines
Warranty & Disclaimer
![]() |
300 Cycles 18650 2200mAh Battery Customized 3.7 Volt Rechargeable Battery 20A Images |
